Initial exhibition design
concept - Axel Kilian summer 2004
Exhibition layout and implementation Will Lark, Franco Variani, Ryan Chin,
Raul-David Poblano, Brian Spires, Bill Mitchell,Axel Kilian, Patrik Kuenzler,
Phil Liang, Mitchell Joachim

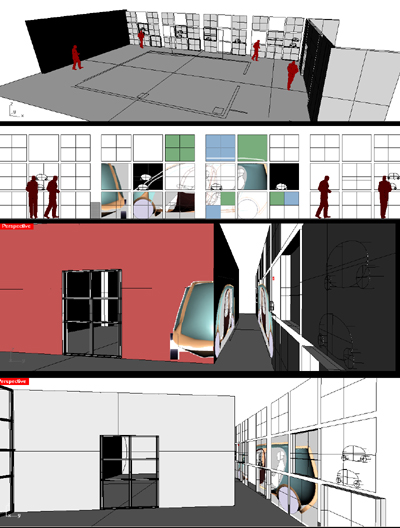

First
exhibition proposal - laying out the idea of a facetted secondary wall in front
of the windows to the libraries. The facetts were to present 1-1 views of the
cars in different models - wireframe, rendered etc switching within the same
model to break up their big size and reflect the multi facetted nature of the
exhibition - Axel Kilian May 2004
Idea
of wrapping a front view/section car around the corner of the stella room to
allow the visitor to walk through the cross section of a car
initial
concept car traffic jam sketch
And final version - 30 feet long - Axel Kilian

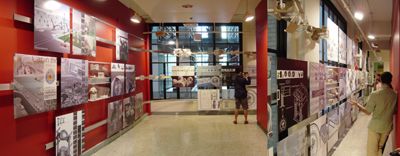

Finished
implemented exhibition after tremendous effort of everyone involved in solving
countless problems and corrections of the original design to make it work and
produce around 40 3x3 feet high resolution print panels to match the concept

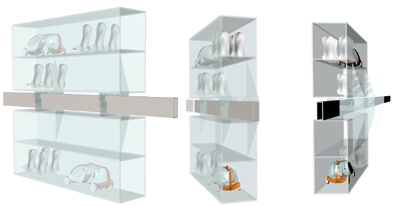

Display
case design - clamping the aluminum rail - the same detail attaches the mylar
holder and gator board holders - acrylic lasercut

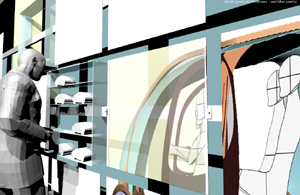

earlier
overall collage of transparent mylar sheet with early version of the display
case and the varying print styles of the content on each panel
