Neutral, undeformed state of the joint, which is being clamped around
the two sectional sides.
The seamline is contected through a pressure fit contact joint along the
elngth of the seam with an overlap of 0.001mm
|
||
|
||
| Modeling approaches to representing the joint | ||
| Problems: | ||

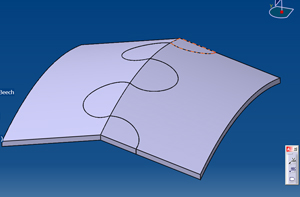

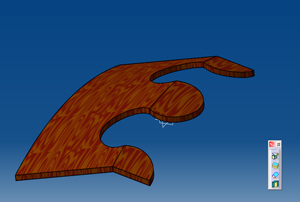

| Modeling environment does allow for pressure fit joint but not for joints forces into place out of position - meaning that if their fit would be loose they could be assembled without force | Attempt at modeling two adjecent ruled, developable surfaces, with the joint piece bridging over the ridge line -crease | Double curved attempt-modeling the surface strips as smoothly deformed double curved strips. |
| Conclusion: CATIA does not support the contact/pressure fit joint for complex surfaceobjects as it is the case in the seam curfaces in these examples. | ||
|
|
|

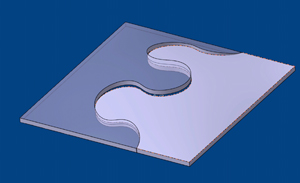

| Simplified flat version of the joint without initial curvature. Curvature gets introduced later throug momentum. | ||
|
||
|

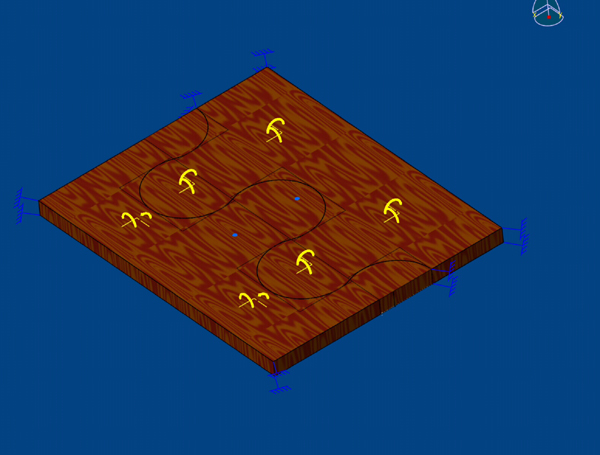

Neutral, undeformed state of the joint, which is being clamped around
the two sectional sides. |
||

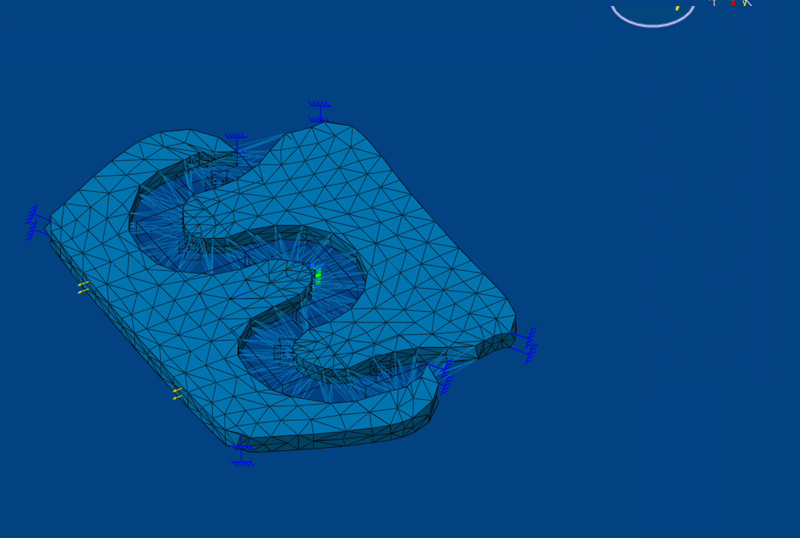

| In plane - in tension with 200Nm in y direction | ||
|
|
|

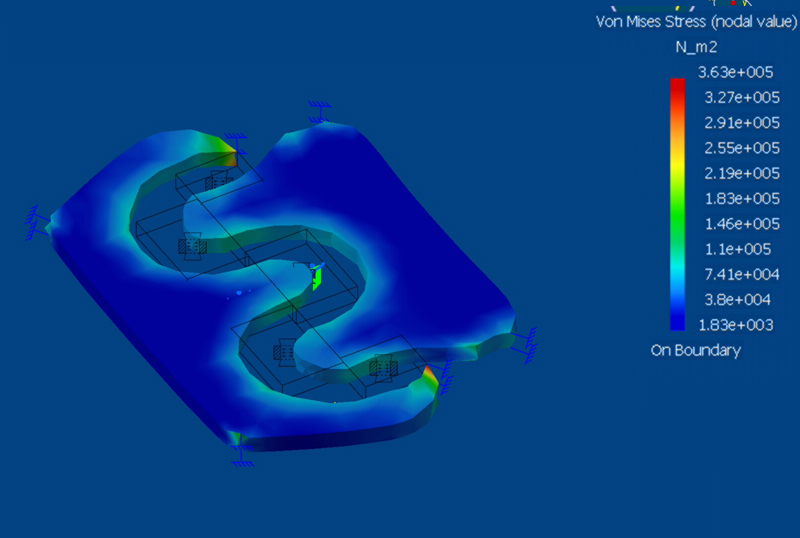

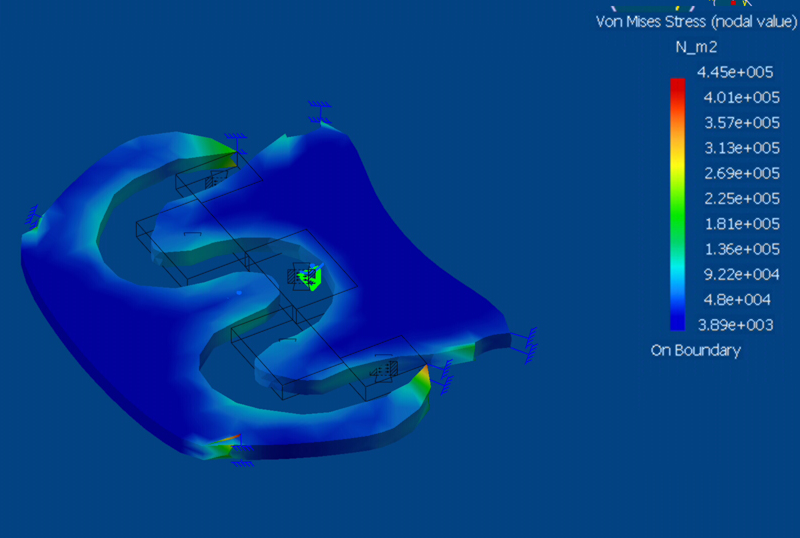

| Displacement image - webbing shows the pressure fit connection | Von Mises Forces with 200Nm pulling in y axis | Von Mises Forces with 2000Nm pulling in y axis |
|
|
|

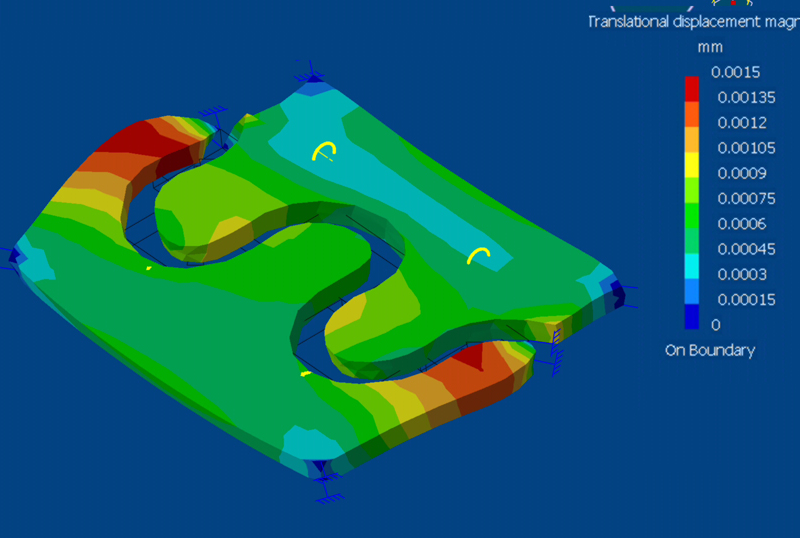

| Translational magnitude map | ||

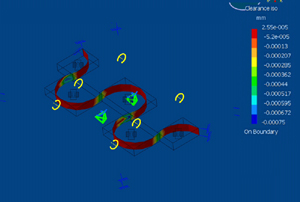

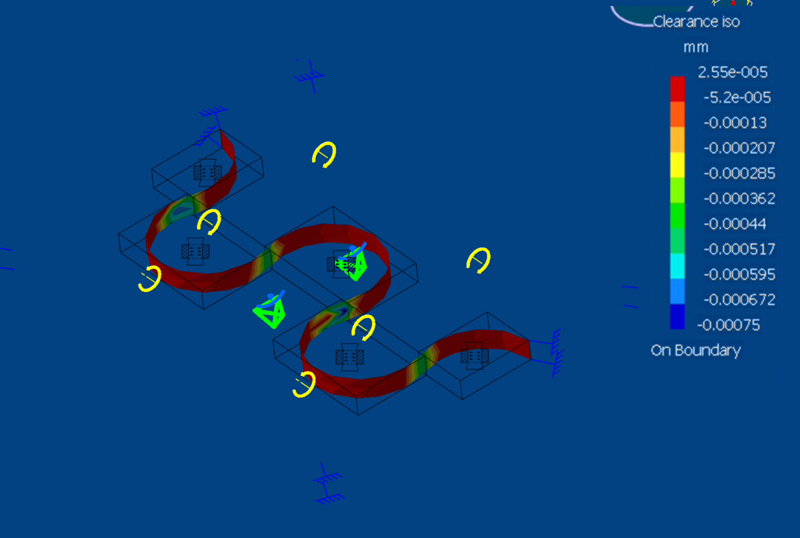

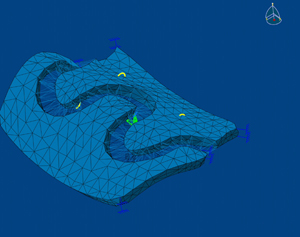

| Oposing momenti in the two parts 40Nm along x Axis | ||
|
|
|
|
|
|

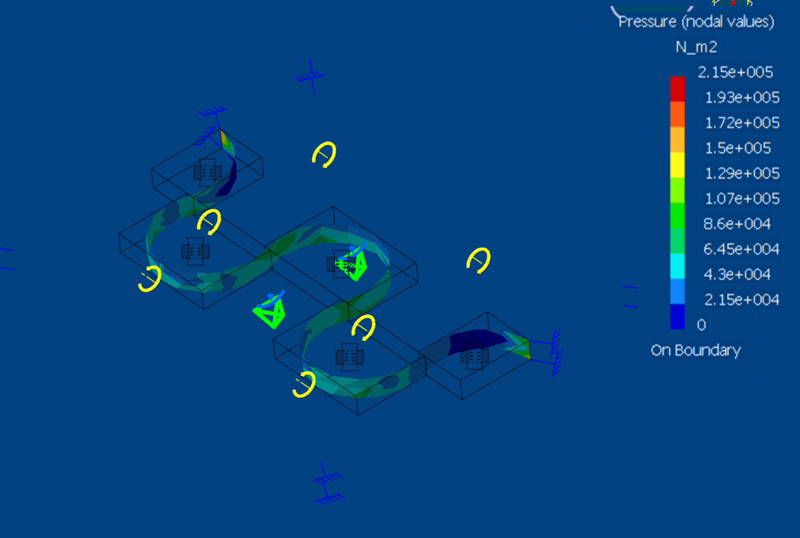

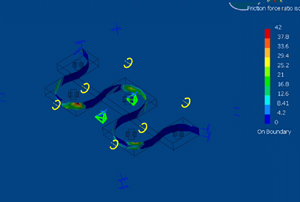

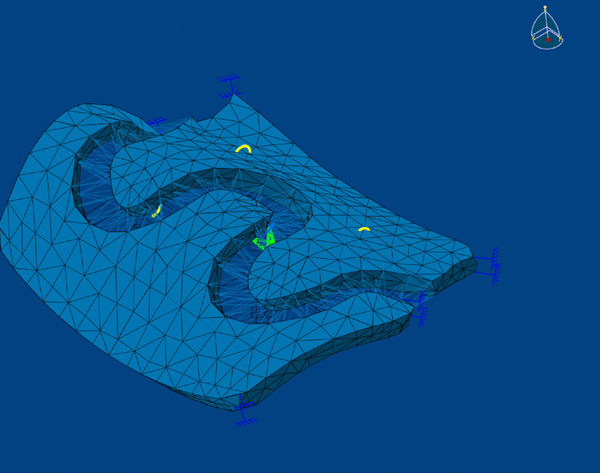

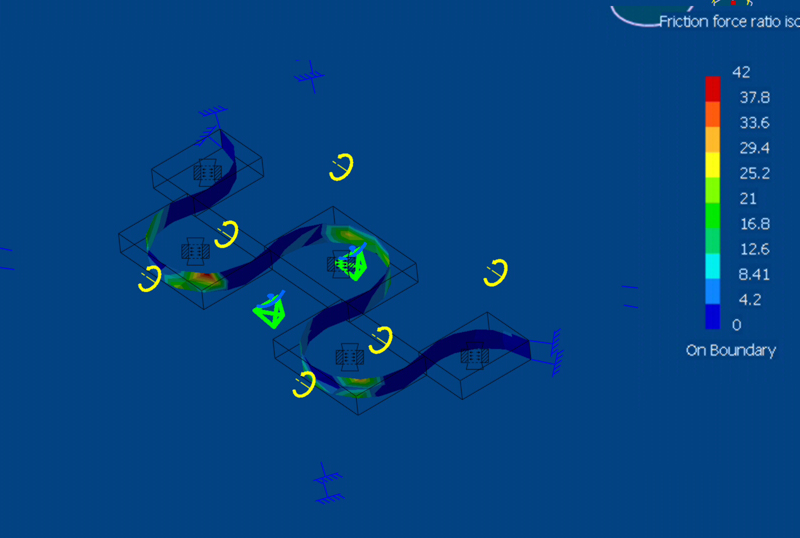

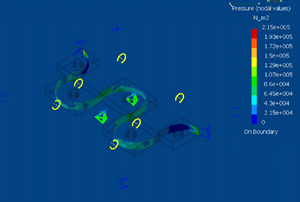

| Displacement | Friction | Pressure |
|
||

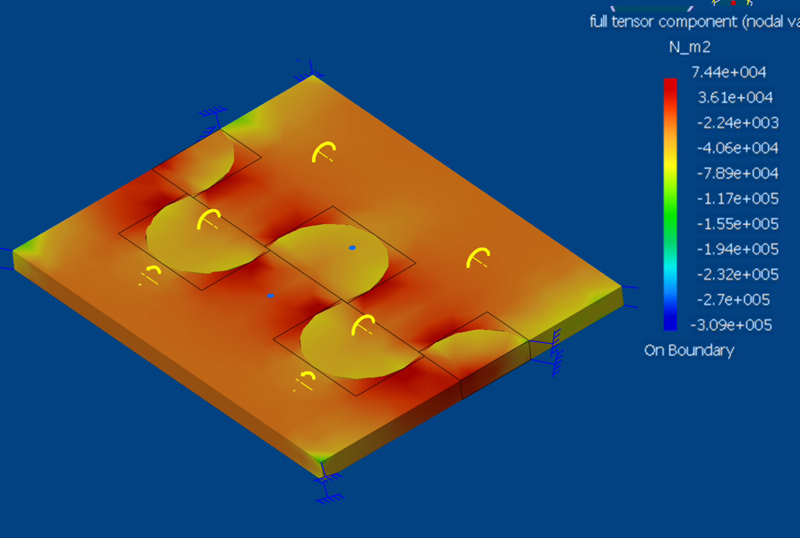

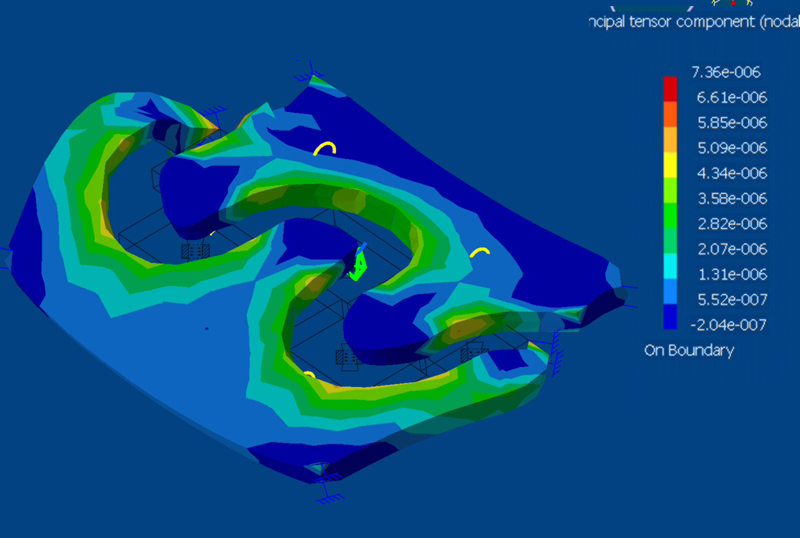

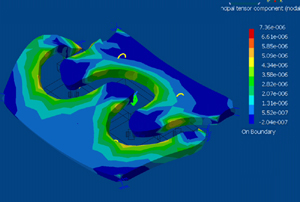

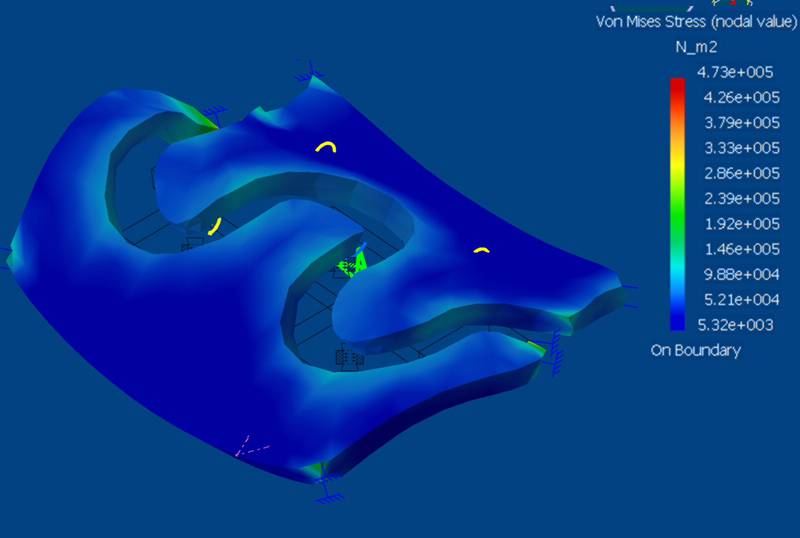

| Stress map | ||
