C:\Documents and Settings\akilian\Desktop\finaljoint\Analysis1.CATAnalysis

MESH:


Entity Size
Nodes 1164
Elements 3568

ELEMENT TYPE:


Connectivity Statistics
TE4 3371 ( 94.48% )
SPIDER 197 ( 5.52% )

ELEMENT QUALITY:


Criterion Good Poor Bad Worst Average
Skewness 3015 ( 89.44% ) 356 ( 10.56% ) 0 ( 0.00% ) 0.866 0.580
Stretch 3371 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 0.382 0.531
Min. Length 3371 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 3.750 6.025
Max. Length 3371 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 20.196 15.503
Shape Factor 3371 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 0.388 0.544
Length Ratio 3371 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 4.257 2.679

Properties.1

Material apply to

  Part1.1 - OCTREE Tetrahedron Mesh.1 : Part1.1
  Part1.1.1 - OCTREE Tetrahedron Mesh.2 : Part1.1.1


Material Bright Oak
Young Modulus 1.32e+010N_m2
Poisson Ratio 0
Density 735kg_m3
Thermal Expansion 0
Yield Strength 0N_m2

Static Case

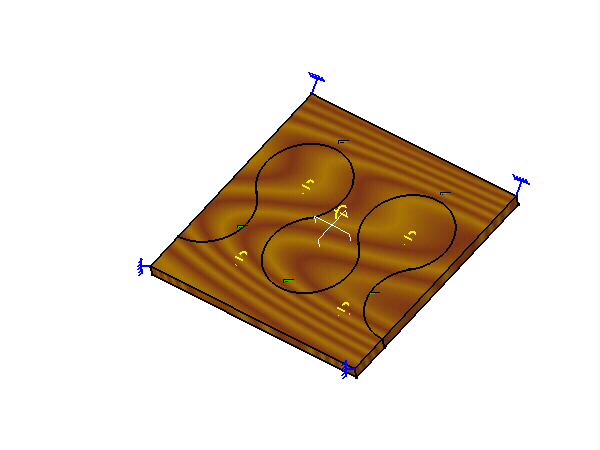

Boundary Conditions

STRUCTURE Computation

Number of nodes : 1164
Number of elements : 3568
Number of D.O.F. : 3492
Number of Contact Elements : 197
Number of Kinematic relations : 394

RESTRAINT Computation

Name: RestraintSet.1

Number of S.P.C : 102

LOAD Computation

Name: LoadSet.1

Applied load resultant :

Fx = 2 . 235e-007  N
Fy = 2 . 296e-010  N
Fz = 1 . 539e-006  N
Mx = 9 . 181e-008  Nxm
My = -1 . 556e-007  Nxm
Mz = -9 . 540e-009  Nxm

STIFFNESS Computation

Number of lines : 3492
Number of coefficients : 61587
Number of blocks : 1
Maximum number of coefficients per bloc : 61587
Total matrix size : 0 . 72  Mb


SINGULARITY Computation

Restraint: RestraintSet.1

Number of local singularities : 0
Number of singularities in translation : 0
Number of singularities in rotation : 0
Generated constraint type : MPC

CONSTRAINT Computation

Restraint: RestraintSet.1

Number of constraints : 496
Number of factorized constraints : 472
Number of deferred constraints : 0

NUMBERING Computation

Restraint: RestraintSet.1

Numbering Method : SLOAN
Number of connected nodes : 1164
Nodal maximum front width : 75
Nodal maximum band width : 292

Method :  SPARSE
Number of factorized degrees : 3020
Number of supernodes : 550
Number of overhead indices : 30370
Number of coefficients : 475178
Maximum front width : 747
Maximum front size : 279378
Size of the factorized matrix (Mb) : 3 . 62532
Number of blocks : 1
Number of Mflops for factorization : 1 . 761e+002
Number of Mflops for solve : 1 . 916e+000
Minimum relative pivot : 7 . 029e-003

Name: StaticSet.1

Restraint: RestraintSet.1

Load: LoadSet.1

Strain Energy : 1.044e-002 J

Contact Analysis

Contact
Element
Contact
Force
N
Initial
Clearance
mm
Final
Clearance
mm
1 1.3504e-001 -1.0000e-003 0.0000e+000
2 No Contact -1.0000e-003 -1.0000e-003
3 No Contact -1.0000e-003 3.1057e-004
4 No Contact -1.0000e-003 -1.0000e-003
5 No Contact -1.0000e-003 1.5852e-005
6 2.8392e+000 -1.0000e-003 0.0000e+000
7 No Contact -1.0000e-003 1.2597e-004
8 3.8845e+000 -1.0000e-003 0.0000e+000
9 3.1235e+000 -1.0000e-003 0.0000e+000
10 No Contact -1.0000e-003 1.2914e-004
11 No Contact -1.0000e-003 1.8679e-005
12 2.8369e+000 -1.0000e-003 0.0000e+000
13 5.0335e+000 -1.0000e-003 0.0000e+000
14 2.2012e+001 -1.0000e-003 0.0000e+000
15 2.0561e+000 -1.0000e-003 0.0000e+000
16 2.6139e+001 -1.0000e-003 0.0000e+000
17 1.8476e+001 -1.0000e-003 0.0000e+000
18 2.9324e+001 -1.0000e-003 0.0000e+000
19 2.8843e+001 -1.0000e-003 0.0000e+000
20 1.6411e+001 -1.0000e-003 0.0000e+000
21 No Contact -1.0000e-003 6.1804e-005
22 No Contact -1.0000e-003 2.1525e-006
23 2.0031e+001 -1.0000e-003 0.0000e+000
24 2.4805e+000 -1.0000e-003 0.0000e+000
25 1.3179e+001 -1.0000e-003 0.0000e+000
26 1.6943e+001 -1.0000e-003 0.0000e+000
27 6.5984e-001 -1.0000e-003 0.0000e+000
28 No Contact -1.0000e-003 8.5741e-005
29 No Contact -1.0000e-003 5.4688e-004
30 No Contact -1.0000e-003 2.6411e-004
31 No Contact -1.0000e-003 3.6764e-005
32 1.3625e+001 -1.0000e-003 0.0000e+000
33 No Contact -1.0000e-003 9.8416e-005
34 No Contact -1.0000e-003 3.2767e-007
35 No Contact -1.0000e-003 1.7564e-006
36 4.8472e+000 -1.0000e-003 0.0000e+000
37 3.5998e+001 -1.0000e-003 0.0000e+000
38 2.0887e+001 -1.0000e-003 0.0000e+000
39 No Contact -1.0000e-003 1.4170e-004
40 1.7290e+001 -1.0000e-003 0.0000e+000
41 No Contact -1.0000e-003 1.8512e-004
42 2.6664e+001 -1.0000e-003 0.0000e+000
43 No Contact -1.0000e-003 1.1310e-004
44 No Contact -1.0000e-003 5.8003e-004
45 No Contact -1.0000e-003 6.8712e-004
46 1.9160e+001 -1.0000e-003 0.0000e+000
47 1.7025e+001 -1.0000e-003 0.0000e+000
48 8.8944e+000 -1.0000e-003 0.0000e+000
49 2.9485e+001 -1.0000e-003 0.0000e+000
50 3.9011e+001 -1.0000e-003 0.0000e+000
51 3.8415e+001 -1.0000e-003 0.0000e+000
52 3.6286e+001 -1.0000e-003 0.0000e+000
53 3.1365e+001 -1.0000e-003 0.0000e+000
54 6.9417e+000 -1.0000e-003 0.0000e+000
55 No Contact -1.0000e-003 9.0501e-006
56 6.1336e+000 -1.0000e-003 0.0000e+000
57 No Contact -1.0000e-003 5.7955e-005
58 2.2345e+001 -1.0000e-003 0.0000e+000
59 1.6153e+001 -1.0000e-003 0.0000e+000
60 5.6279e+000 -1.0000e-003 0.0000e+000
61 No Contact -1.0000e-003 7.6157e-005
62 No Contact -1.0000e-003 3.0724e-004
63 No Contact -1.0000e-003 6.4766e-004
64 No Contact -1.0000e-003 1.7691e-004
65 No Contact -1.0000e-003 2.0694e-004
66 No Contact -1.0000e-003 7.4200e-004
67 1.0415e+001 -1.0000e-003 0.0000e+000
68 2.8265e+001 -1.0000e-003 0.0000e+000
69 2.8773e+001 -1.0000e-003 0.0000e+000
70 1.0884e+001 -1.0000e-003 0.0000e+000
71 No Contact -1.0000e-003 1.1312e-004
72 4.2291e+000 -1.0000e-003 0.0000e+000
73 No Contact -1.0000e-003 -1.0000e-003
74 No Contact -1.0000e-003 1.2625e-004
75 4.8687e+001 -1.0000e-003 0.0000e+000
76 No Contact -1.0000e-003 2.6753e-005
77 4.3018e+000 -1.0000e-003 0.0000e+000
78 4.4740e+001 -1.0000e-003 0.0000e+000
79 2.6329e+000 -1.0000e-003 0.0000e+000
80 2.6376e+001 -1.0000e-003 0.0000e+000
81 No Contact -1.0000e-003 2.3939e-005
82 2.4001e+001 -1.0000e-003 0.0000e+000
83 2.0839e+001 -1.0000e-003 0.0000e+000
84 2.7535e+000 -1.0000e-003 0.0000e+000
85 4.3815e+000 -1.0000e-003 0.0000e+000
86 7.3370e+000 -1.0000e-003 0.0000e+000
87 No Contact -1.0000e-003 3.2771e-004
88 No Contact -1.0000e-003 1.2395e-004
89 1.1177e+000 -1.0000e-003 0.0000e+000
90 8.6698e-001 -1.0000e-003 0.0000e+000
91 1.3617e+000 -1.0000e-003 0.0000e+000
92 9.0206e+000 -1.0000e-003 0.0000e+000
93 3.5909e+000 -1.0000e-003 0.0000e+000
94 No Contact -1.0000e-003 3.5932e-004
95 No Contact -1.0000e-003 5.1652e-005
96 1.3148e+000 -1.0000e-003 0.0000e+000
97 2.9154e+001 -1.0000e-003 0.0000e+000
98 4.1658e+001 -1.0000e-003 0.0000e+000
99 3.2372e+001 -1.0000e-003 0.0000e+000
100 5.0413e+000 -1.0000e-003 0.0000e+000
101 4.7398e+000 -1.0000e-003 0.0000e+000
102 No Contact -1.0000e-003 4.7022e-006
103 7.0233e+000 -1.0000e-003 0.0000e+000
104 5.9578e+000 -1.0000e-003 0.0000e+000
105 2.0400e+001 -1.0000e-003 0.0000e+000
106 2.9500e+001 -1.0000e-003 0.0000e+000
107 7.0770e-002 -1.0000e-003 0.0000e+000
108 4.1983e+000 -1.0000e-003 0.0000e+000
109 No Contact -1.0000e-003 2.6275e-005
110 3.8115e+001 -1.0000e-003 0.0000e+000
111 1.9270e+001 -1.0000e-003 0.0000e+000
112 3.1452e+001 -1.0000e-003 0.0000e+000
113 2.3564e+001 -1.0000e-003 0.0000e+000
114 1.3066e+000 -1.0000e-003 0.0000e+000
115 No Contact -1.0000e-003 -1.0000e-003
116 No Contact -1.0000e-003 -1.0000e-003
117 No Contact -1.0000e-003 -1.0000e-003
118 No Contact -1.0000e-003 -1.0000e-003
119 1.8831e+001 -1.0000e-003 0.0000e+000
120 No Contact -1.0000e-003 -1.0000e-003
121 No Contact -1.0000e-003 5.7153e-005
122 No Contact -1.0000e-003 -1.0000e-003
123 9.5901e+000 -1.0000e-003 0.0000e+000
124 No Contact -1.0000e-003 3.3155e-004
125 3.9117e+000 -1.0000e-003 0.0000e+000
126 3.2517e+001 -1.0000e-003 0.0000e+000
127 2.3761e+001 -1.0000e-003 0.0000e+000
128 1.7562e+001 -1.0000e-003 0.0000e+000
129 2.7008e+001 -1.0000e-003 0.0000e+000
130 2.1668e+001 -1.0000e-003 0.0000e+000
131 3.4732e+000 -1.0000e-003 0.0000e+000
132 3.2574e+001 -1.0000e-003 0.0000e+000
133 1.4814e+001 -1.0000e-003 0.0000e+000
134 1.6934e+001 -1.0000e-003 0.0000e+000
135 No Contact -1.0000e-003 6.4557e-005
136 No Contact -1.0000e-003 9.0522e-005
137 2.9084e+001 -1.0000e-003 0.0000e+000
138 No Contact -1.0000e-003 3.1208e-004
139 No Contact -1.0000e-003 3.8063e-004
140 5.2931e+000 -1.0000e-003 0.0000e+000
141 No Contact -1.0000e-003 6.7345e-006
142 2.9076e+000 -1.0000e-003 0.0000e+000
143 2.7424e+001 -1.0000e-003 0.0000e+000
144 3.8525e+001 -1.0000e-003 0.0000e+000
145 3.5725e+001 -1.0000e-003 0.0000e+000
146 4.1937e+001 -1.0000e-003 0.0000e+000
147 No Contact -1.0000e-003 6.5798e-006
148 5.7650e+000 -1.0000e-003 0.0000e+000
149 2.7123e+001 -1.0000e-003 0.0000e+000
150 3.9373e+001 -1.0000e-003 0.0000e+000
151 No Contact -1.0000e-003 1.2501e-004
152 No Contact -1.0000e-003 8.9935e-005
153 No Contact -1.0000e-003 1.3477e-004
154 6.5910e+000 -1.0000e-003 0.0000e+000
155 No Contact -1.0000e-003 5.8835e-005
156 3.9333e+001 -1.0000e-003 0.0000e+000
157 No Contact -1.0000e-003 7.5020e-005
158 7.4744e+000 -1.0000e-003 0.0000e+000
159 6.4456e+000 -1.0000e-003 0.0000e+000
160 No Contact -1.0000e-003 1.4555e-004
161 No Contact -1.0000e-003 1.9927e-004
162 1.5025e+000 -1.0000e-003 0.0000e+000
163 6.5091e+000 -1.0000e-003 0.0000e+000
164 No Contact -1.0000e-003 1.3407e-004
165 9.6926e+000 -1.0000e-003 0.0000e+000
166 1.2296e+001 -1.0000e-003 0.0000e+000
167 3.4789e+000 -1.0000e-003 0.0000e+000
168 No Contact -1.0000e-003 5.0627e-004
169 No Contact -1.0000e-003 8.0045e-004
170 5.1764e+000 -1.0000e-003 0.0000e+000
171 1.3496e+001 -1.0000e-003 0.0000e+000
172 3.2908e+001 -1.0000e-003 0.0000e+000
173 2.2619e+001 -1.0000e-003 0.0000e+000
174 No Contact -1.0000e-003 -1.0000e-003
175 No Contact -1.0000e-003 -1.0000e-003
176 No Contact -1.0000e-003 8.3165e-005
177 No Contact -1.0000e-003 5.5225e-004
178 7.4313e+000 -1.0000e-003 0.0000e+000
179 2.9588e+001 -1.0000e-003 0.0000e+000
180 7.4557e+000 -1.0000e-003 0.0000e+000
181 No Contact -1.0000e-003 2.2696e-006
182 3.2196e+000 -1.0000e-003 0.0000e+000
183 No Contact -1.0000e-003 1.0246e-004
184 No Contact -1.0000e-003 3.7164e-005
185 No Contact -1.0000e-003 1.7931e-005
186 1.6994e+000 -1.0000e-003 0.0000e+000
187 No Contact -1.0000e-003 5.7729e-005
188 No Contact -1.0000e-003 -1.0000e-003
189 No Contact -1.0000e-003 1.8922e-004
190 No Contact -1.0000e-003 3.8218e-005
191 1.2361e+001 -1.0000e-003 0.0000e+000
192 No Contact -1.0000e-003 9.4664e-005
193 2.6322e+001 -1.0000e-003 0.0000e+000
194 No Contact -1.0000e-003 1.8211e-005
195 1.6317e+001 -1.0000e-003 0.0000e+000
196 4.3177e+000 -1.0000e-003 0.0000e+000
197 6.7853e+000 -1.0000e-003 0.0000e+000


Equilibrium

Components Applied
Forces
Reactions Residual Relative
Magnitude Error
Fx (N) 2.2352e-007 -2.2354e-007 -2.5903e-011 3.2048e-013
Fy (N) 2.2956e-010 -2.2773e-010 1.8347e-012 2.2700e-014
Fz (N) 1.5381e-006 -1.5385e-006 -4.4002e-010 5.4441e-012
Mx (Nxm) 9.1799e-008 -9.1821e-008 -2.2419e-011 2.7737e-012
My (Nxm) -1.5561e-007 1.5561e-007 -9.1423e-013 1.1311e-013
Mz (Nxm) -9.5396e-009 9.5388e-009 -7.1187e-013 8.8074e-014

Static Case Solution.1 - Deformed Mesh

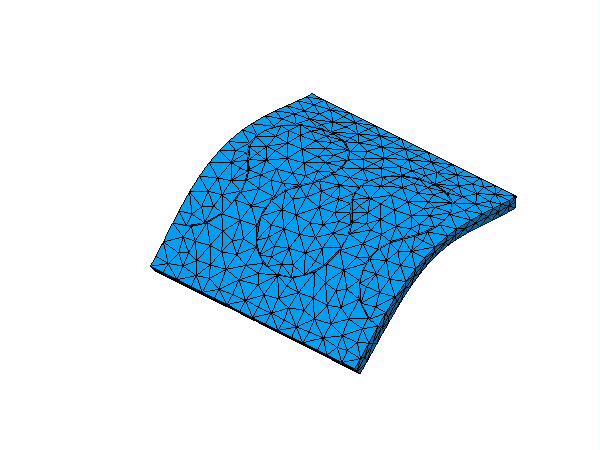

Display On Boundary ---- Over all the Model

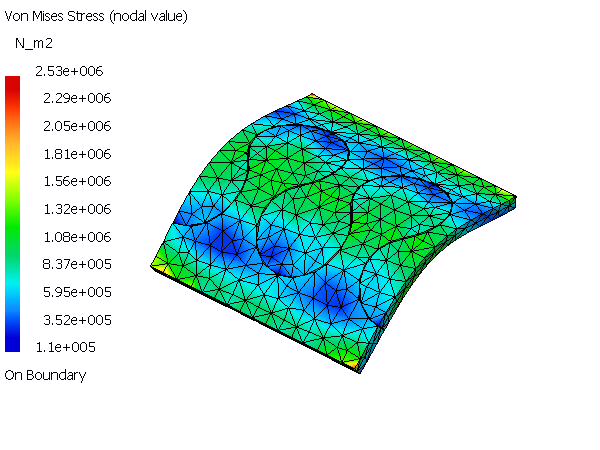

Static Case Solution.1 - Von Mises Stress (nodal value)

Components : ALL

Display On Boundary ---- Over all the Model

Other Sensors


Sensor Name Sensor Value
Energy 0.01J
