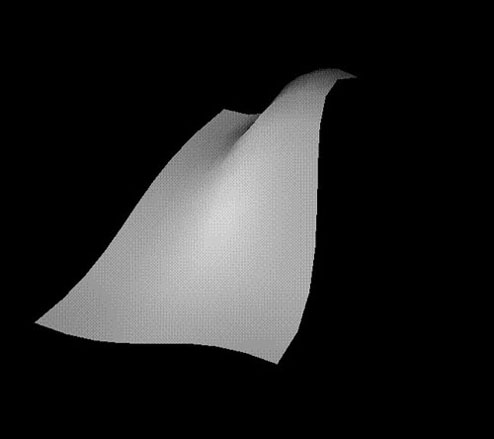

The 3dmesh based on the spline generated polylines. The 4 points and eigth slopes allow for a maximum of a S-shape on each shape or an archlike bow. The spline only allows for one transition from concave into convex . This limitation I tried to overcome by chaining the spline patches in the above examples
